The choice between monolithic and microservice architecture significantly impacts the design, development, and maintenance of software applications. Here’s a detailed comparison:

A monolithic architecture is a single, unified software application where all the components and functionalities are tightly coupled and run as a single service.
Fig-01: Monolithic Architecture

Structure

  • All components (e.g., UI, business logic, data access) are part of one large codebase.
  • Typically, it's deployed as a single unit (e.g., a single executable or a single container).

Advantages

  • Simplicity: Easier to develop, test, and deploy initially.
  • Performance: Often more efficient in terms of resource usage and latency due to fewer inter-process communications.
  • Debugging: Easier to trace and debug due to a single codebase and execution context.

Disadvantages

  • Scalability: Scaling requires replicating the entire application, which can be inefficient.
  • Flexibility: Difficult to adopt new technologies incrementally.
  • Maintenance: As the codebase grows, it becomes harder to manage, understand, and modify.
  • Deployment: Any change, even a minor one, requires redeploying the entire application.

Use Cases

  • Best for simpler, smaller applications with a clear and stable scope.
  • Easier for teams with less experience in distributed systems.



A microservice architecture structures an application as a collection of loosely coupled, independently deployable services.

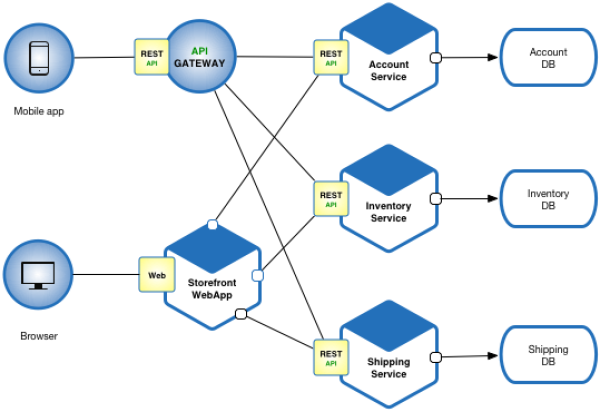

Fig-02: Microservice Architecture

Structure

  • Each service encapsulates a specific business capability, has its own codebase, and can be developed, deployed, and scaled independently.
  • Services communicate with each other using APIs, often over HTTP/REST or messaging queues.

Advantages

  • Scalability: Individual services can be scaled independently based on demand.
  • Flexibility: Different services can use different technologies and programming languages.
  • Resilience: Failure in one service doesn’t necessarily bring down the entire system.
  • Deployment: Continuous deployment and integration are more feasible; changes can be deployed without affecting the entire system.

Disadvantages

  • Complexity: More complex to design and manage due to the distributed nature.
  • Latency: Communication between services adds overhead and potential latency.
  • Testing: End-to-end testing can be challenging.
  • Data Management: Managing data consistency across services can be difficult.

Use Cases

  • Ideal for large, complex applications that require scalability and flexibility.
  • Suited for applications where different parts need to evolve independently.
  • Requires a mature DevOps culture and infrastructure for continuous deployment and monitoring.

Summary

  • Monolithic Architecture: Simpler and more straightforward but can become unwieldy and difficult to maintain as it grows.
  • Microservice Architecture: Offers greater scalability and flexibility but comes with increased complexity in design, deployment, and management.
